Marino Gravel Frame – Reynolds 520

(1 customer review)

Available colors: pastel green, orange.

Price: US$379

Worldwide Shipping: US$145

Shipping price adjustment notice
In Peru, all export agencies have made a slight adjustment to the shipping price. For this reason we have found it necessary to adjust shipping prices on all our products.
Your understanding is appreciated

Limited stock



Wheels up to 650b 2.00 or 700x45c
For BSA 68mm bottom bracket
For 12x142mm thru axle rear hub
For 27.2mm seatpost
46T max chainring in 1x or 50T/34/ in 2x
TR44 head tube
3 bottle cage mounts
1 top tube bag mount
Designed for 400mm taper fork with 52mm Rake


  • 1 Thru axle
  • 1 SRAM Universal Derailleur Hanger (UDH)
  • 1 aluminum seat clamp


  • S: 2.35kg
  • M: 2.50kg
  • L: 2.65kg
  • XL: 2.75kg


Worldwide Shipping: US$120

2-3 weeks.


2 years against manufacturing defects.

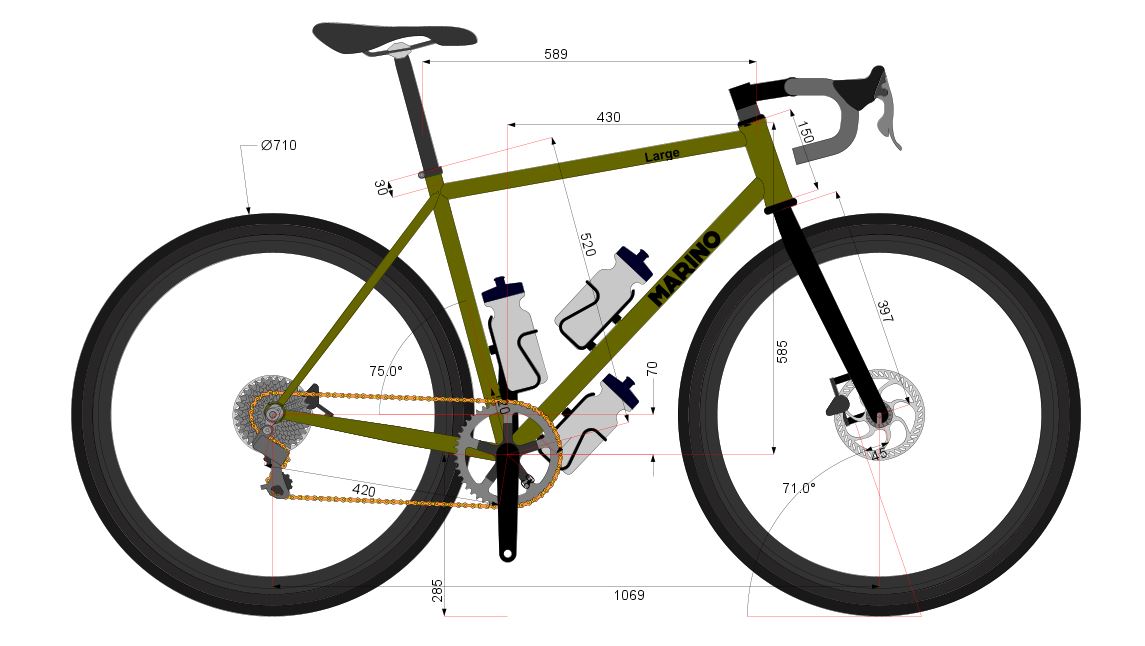

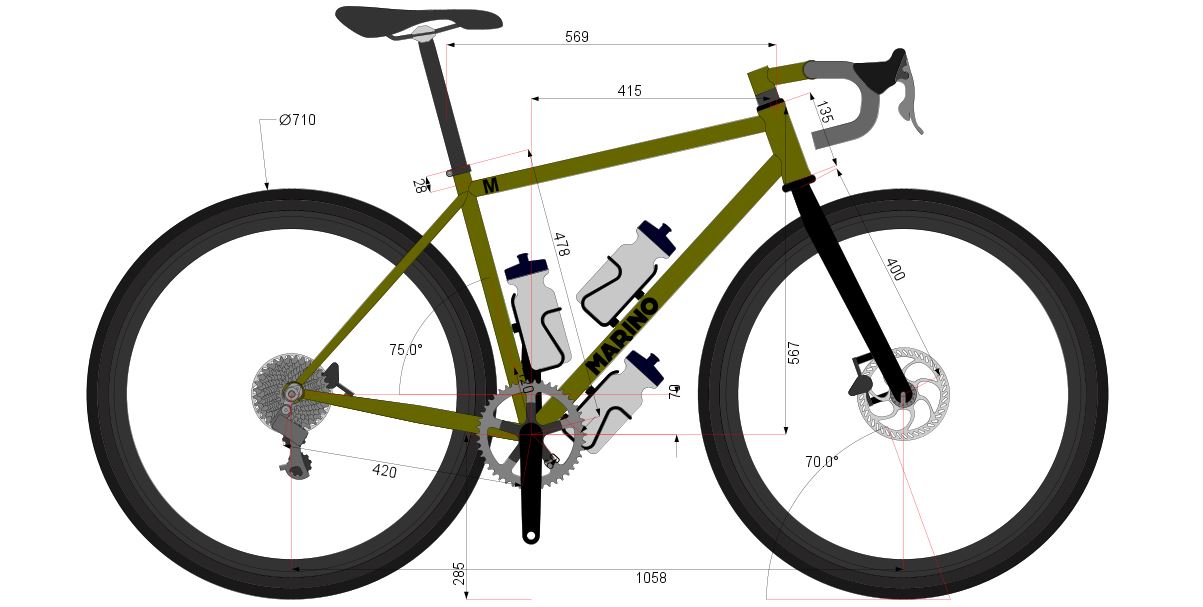

Head tube angle 70° 70° 71° 70.5°
Head tube length 110mm 135mm 150mm 180mm
Effective top tube length 549mm 569mm 589mm 601mm
Seat tube angle 75° 75° 75° 74.5°
Seat tube length 450mm 478mm 520mm 550mm
Chainstay length 420mm 420mm 420mm 420mm
Reach 401mm 415mm 430mm 430mm
Stack 543mm 567mm 585 612mm
BB Drop 70mm 70mm 70mm 70mm
Wheelbase 1035mm 1058mm 1069mm 1084mm
Rider’s height 160cm/5’3″ to 170cm/5’7″ 168cm/5’6″ to 178cm/5’10” 175cm/5’9″ to 185cm/6’10” 182cm/6′ to 193cm/6’4″

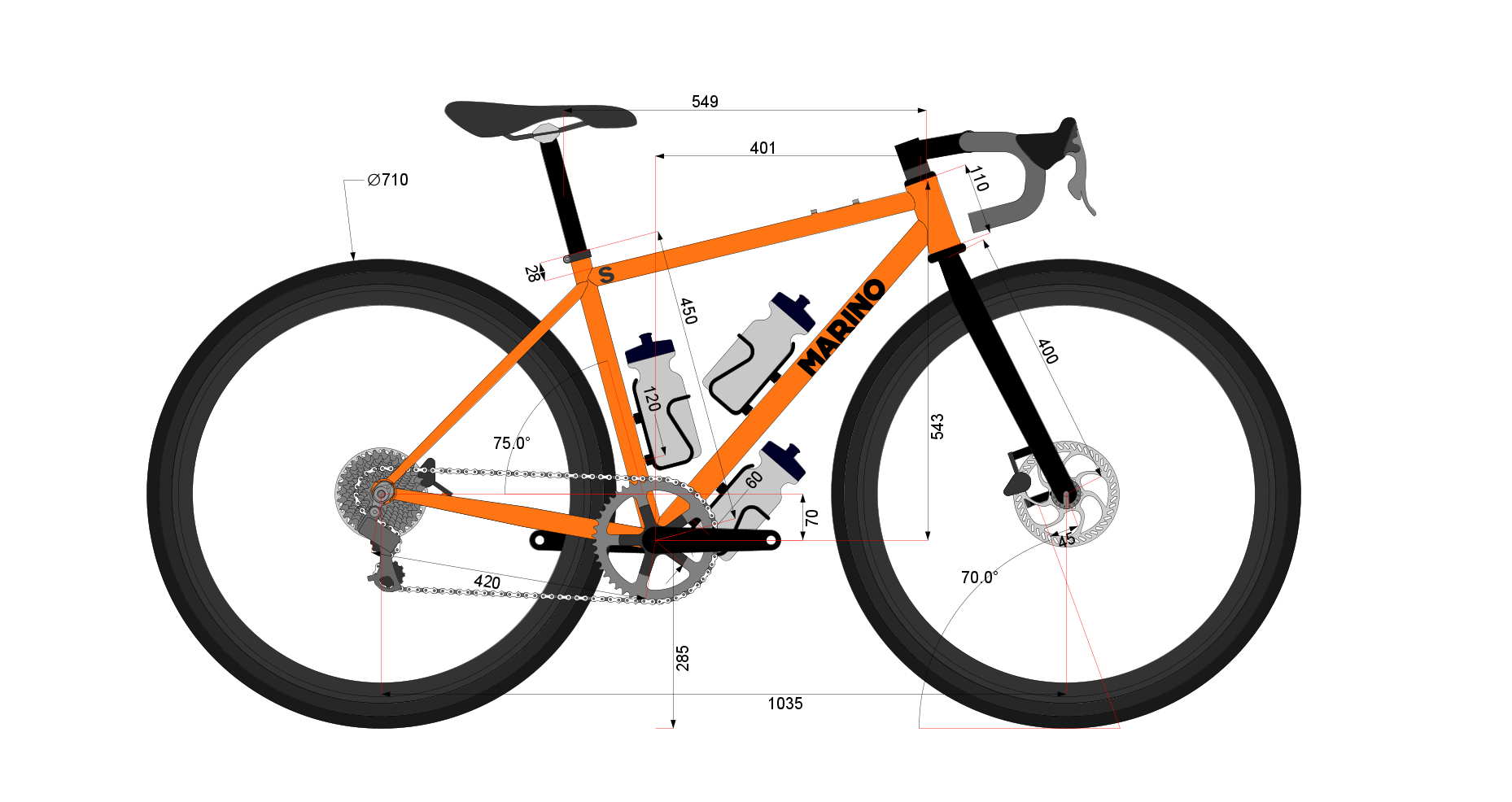

Marino Gravel S Size geometry

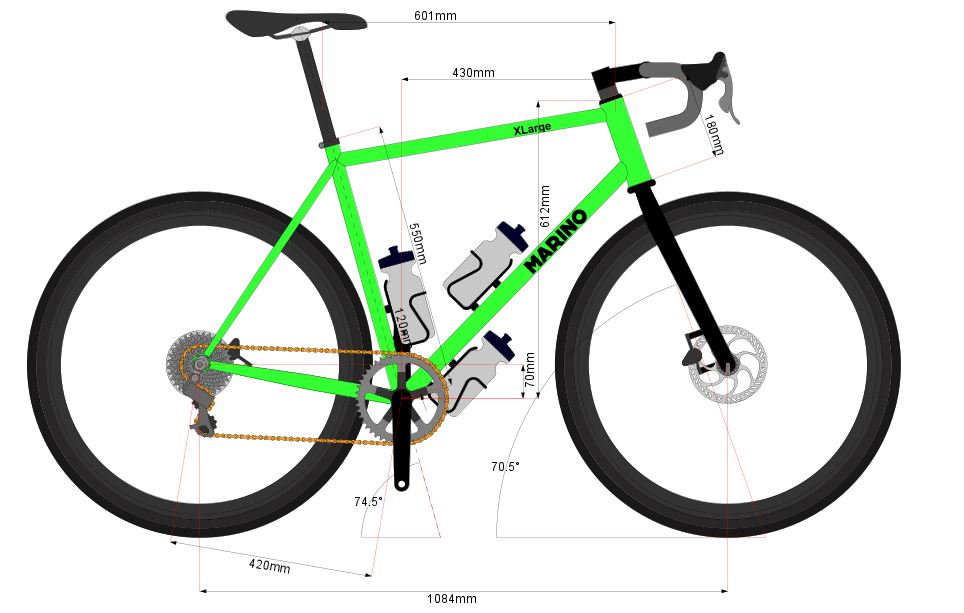

X Large:

1 review for Marino Gravel Frame – Reynolds 520

  1. Cory Spradlin (verified owner)

    I’ve ridden this for a quite a few miles now and love it. Ridden mostly on the road but also crushes my local gravel/trails. Can’t recommend this enough.
