Custom Frame Customization Options

Headtubes:

  • Straight 44mm: 100mm, 110mm, 120mm, 135mm, 150mm and 180mm
    *Compatible with tapered and straight steerers.
  • Integrated Tapered 42/52mm:  125mm, 133mm, 150mm and 180mm
  • Semi integrated Tapered 44/56mm: 100mm, 135mm, 150mm, 180mm
  • Integrated BMX: 120, 135, 180mm
  • 1 1/8″: Any length

Bottom Brackets

  • 68mm BSA
  • 73mm BSA
  • 83mm BSA
  • 100mm BSA
  • 73mm Press-fit BB30

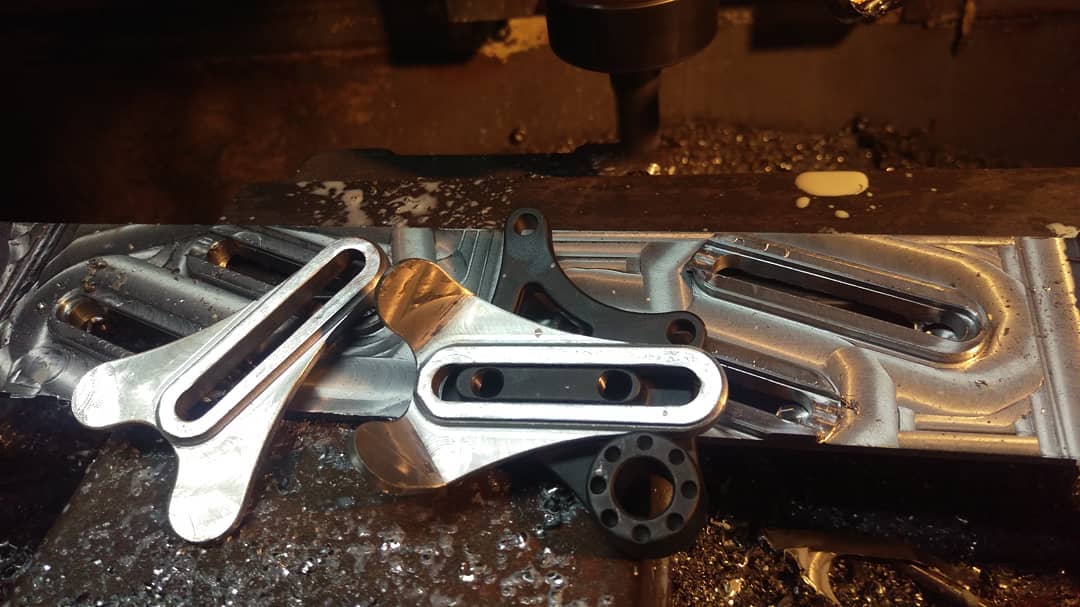

Dropouts

  • Fixed thru-axle
  • Sliding (15mm of sliding range)
    Vertical
  • Horizontal

Tubing

  • Double butted Chromoly 4130
  • Heat treated double butted Chromoly 4130
  • Reynolds 520
  • Reynolds 725
  • Columbus Cromor

Tubing diameters

  • Top tube: 31.8mm 09-06-09 or 28.6mm 09-06-09
  • Downtube: 34.9mm 09-06-09 or 31.8mm09-06-09
  • Seatstays: 16 mm or 19 mm * 09 mm
  • Chainstays: 22.2 x 1.0 tapered 13 mm

For Full suspension frames:

  • Downtube: 34.9 x 1.1
  • Top tube: 31.8 x 1.0-0.7-1.0

Brake mounts

  • Flat mount
  • IS disc mount
  • Post mount
  • V-brakes
  • Magura HS33
  • Caliper (road)

Colors

CNC engraving

https://www.marinobike.com/cnc-engraving/

Cable Routing

https://www.marinobike.com/internal-cable-routing/

Head Tube Gussets
