Description

Pre order

New stock: 15/09/2021
Shipping: 2 weeks

The Marino Cábala, an Enduro frame with an aggresive geometry.
This is our 29″/27.5″ enduro frame made by hand by MarinoBike.

Featuring a slack head tube, short chainstays and a steep seat tube angle.

With the bent seat tube you’ll be able to fit up to 29+ tires.

Main features:

  • Handmade with Reynolds 520 tubing
  • Powder coated
  • 44mm/56mm tapered head tube
  • For 142mmx12mm and 148mmx12mm thru-axle hubs.
  • Stealth routing for 31.6mm dropper seatpost
  • ISCG05 tabs
  • Made for 140mm-170mm forks
  • 180mm IS disc mount
  • 73mm BSA bottom bracket shell.
  • Fits up to 29×3.0″ tyres
  • Includes:
    • 1 axle and 3 derailleur hangers
    • Aluminum seat clamp
    • Marino Semi Integrated/Internal Headset





Geometries:

M L
Head tube angle 64.5° 64.5°
Head tube length 120mm 135mm
Effective top tube length 604mm 643mm
Seat tube angle 77.7° 77.2°
Seat tube length 445mm 470mm
Chainstay length 430mm 430mm
Reach 467mm 499mm
Stack 611mm 613mm
BB Drop 55mm 55mm
Wheelbase 1215mm 1248mm

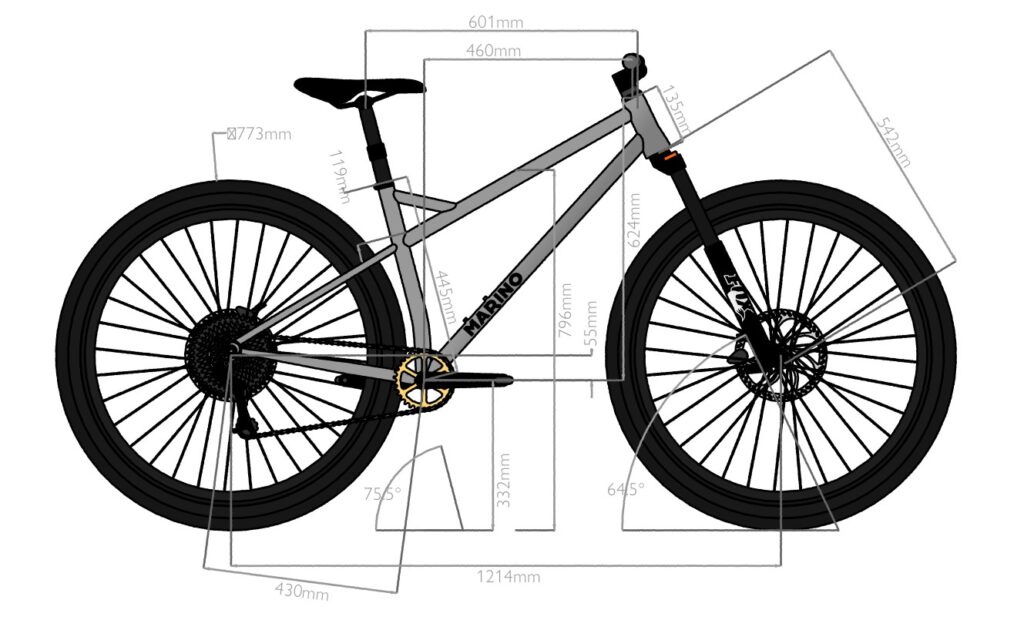

M Size:

Marino Cábala M

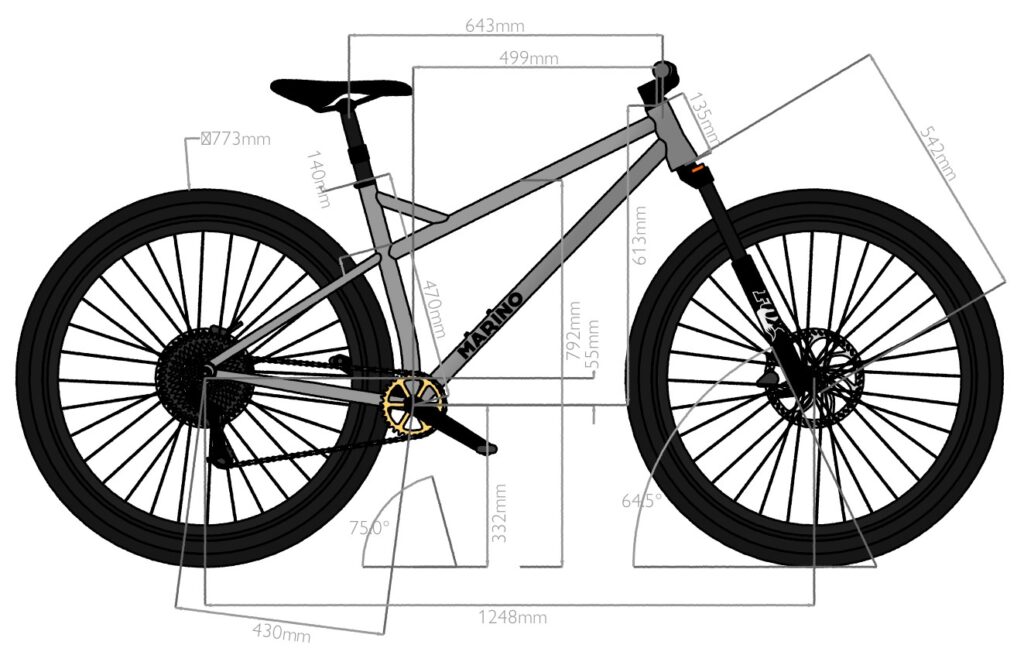

L Size:



Marino Cábala L



Color Palette









1 review for Preorder 29″/27.5″ Marino Cábala 2021 Enduro Frameset

  1. John Miller

    Excellent quality frame at an amazing price! Geometry is RAD and the build quality is excellent!

Add a review

Your email address will not be published. Required fields are marked *

Preorder 29"/27.5" Marino Cábala 2021 Enduro Frameset
(1 customer review)
New stock: 15/09/2021

The Marino Cábala, an Enduro frame with an aggresive geometry.
This is our 29″/27.5″enduro hardtail made by hand by MarinoBike with Reynolds 520 tubing.

Featuring a slack head tube, short chainstays and a steep seat tube angle.

With the bent seat tube you’ll be able to fit up to 29+ tires.

Price includes express worldwide shipping (average 14 days)

Includes:

    • 1 axle and 3 derailleur hangers
    • Aluminum seat clamp
    • Marino Semi Integrated/Internal Headset



$499.00
