Marino Chaski - Bikepacking Frameset

The Marino Chaski, our strong steel bikepacking frameset.
This is our 29″ (compatible with 27.5″) bikepacking frame and fork made by hand by MarinoBike with Reynolds 520 tubing.

Frame and fork for US$599.

Price includes free worldwide shipping (average 4 weeks).

Includes:

    • Marino Chaski Chromoly 4130 bike packing fork
    • 1 axle
    • 3 derailleur hangers
    • 1 aluminum seat clamp

Pick your color from our list and we’ll powdercoat it in one week (click to view options).



$599.00

Description

Marino Chaski - Bikepacking frameset
44mm head tube

44 mm head tube

Compatible with straight and tapered forks

Tapered fork

3x bottle mounts on each leg

Rack mounts

Fender mounts

IS disc brake mounts

Thru-axle dropouts

Dropouts

148x12mm fixed thru-axle dropouts

1 axle and 3 derailleur hangers included

3x bottle mount

Triple bosses for bottle cage mount

3x bottle mount

Triple bosses for bottle cage mount

3x bottle mount

Triple bosses for bottle cage mount

2x bottle mount

Bottle cage mount

2x bottle mount

Bottle cage mount

MAIN FEATURES:

  • Handmade and TIG welded with Reynolds 520 tubing
  • Powder coated
  • Color options: Pick your color and we’ll powder coat it in one week: Powdercoating Colors
  • 44mm head tube
  • For 148mmx12mm thru-axle hubs (boost).
  • Stealth routing for 31.6mm dropper seat post
  • 73mm BSA bottom bracket shell.
  • Fits up to 27.5″x3.0 / 29″x2.5″ tyres
  • For 500mm rigid forks or 100mm to 120mm travel suspension forks.
  • Front derailleur routing
  • Chainring sizes:
    • 36t
    • 24t/36t
    • 24t/36t
    • 24t/36t/48t
  • Includes:
    • Chromoly 4130 Marino Chaski bike packing fork
      • Triple bottle mounts
      • Rack and fender mounts
      • Thru-axle
    • 1 rear thru-axle
    • 3 derailleur hangers
    • 1 aluminum seat clamp


Geometries:

 SML
Head tube angle67°67°67°
Head tube length110mm120mm150mm
Effective top tube length599mm627mm650mm
Seat tube angle74°74°74°
Seat tube length420mm450mm485mm
Chainstay length435mm435mm435mm
Reach435mm460mm485mm
BB Drop60mm60mm60mm
Fork Length500mm500mm500mm
Fork Rake45mm45mm45mm
Rider’s height168cm/5’6″
to
178cm/5’10”
175cm/5’9″
to
185cm/6’1″
182cm/6′
to
193cm/6’4″



S Size:

Marino Chaski Bikepacking Frameset S Size

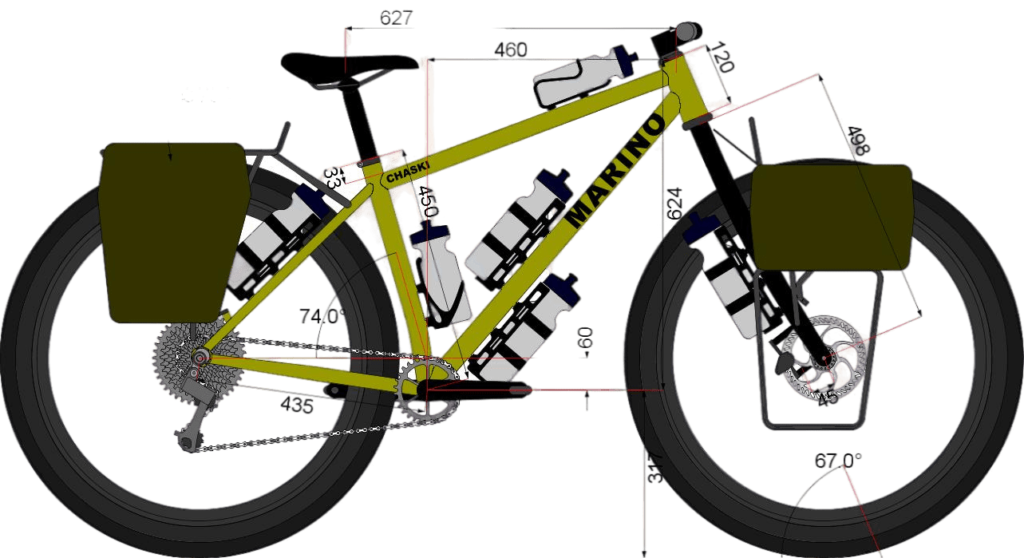

M Size:

Marino Chaski Bikepacking Frameset Medium Size

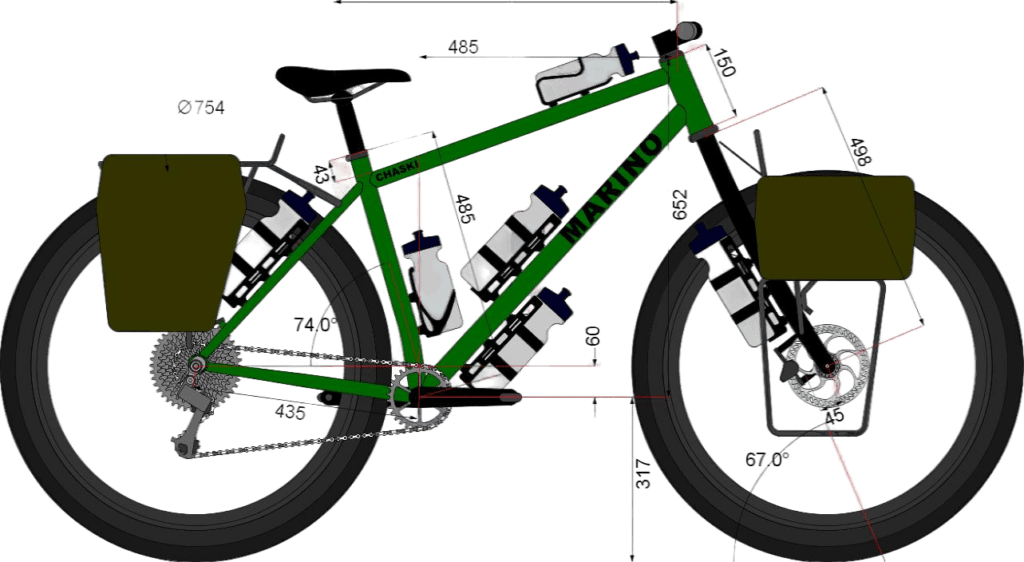

L Size:

Marino Chaski Bikepacking Frameset Large Size

shipping

Free worldwide shipping (4 weeks).
